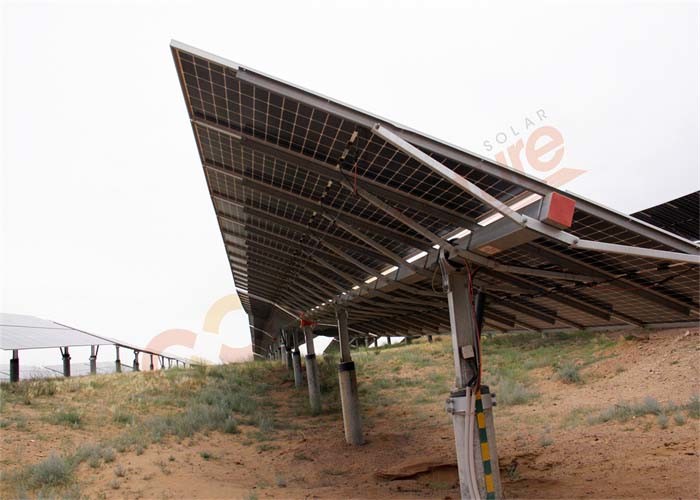

Upgraded Automatic Solar Tracker Low Maintenance
Working principle:
Solar trackers are rising in popularity, solar panel tracking solutions are a more advanced technology for mounting photovoltaic panels. Stationary mounts, which hold panels in a fixed position, can have their productivity compromised when the sun passes to a less-than-optimal angle. Compensating for this, solar trackers automatically move to track the path of the sun across the sky, thereby maximizing output.
Technical Parameters of Upgraded Automatic Solar Tracker Low Maintenance
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| Foundation Options | All foundation types |
| Terrain Adaption | Up to 20% N-S slope |
| Structure Material | Hot dip galvanized steel |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| String-Powered | Yes |
| Night Position | Yes |
Advantages:
1. Optimal efficient installation
Compare with the market, after project design and business accounting, the Good future Single Axis Tracker offers fewer foundations for each average MW.
2. Simple link with tracker system Controller
Good Future Solar offers different types of tracker controller: with/without Lithium battery or self-power controller. All these just need very easy link and no more operations after installation.
3. High Reliability and Durability
All the structures and accessories are using good material with high corrosion resistance quality and long life period, Good future Single Axis Tracker System protects itself in high wind and faults conditions.
1. Single row independent drive unit, no connection between row and row, to ensure convenient traffic between square array;
2. Slew drive design, with high transfer efficiency and good environmental adaptability, the drive unit can be maintained free for 25 years;
3. Adopt the form of self-power supply, without external power supply;
4. Independently developed MCU microcomputer control system;
Business Scope
1. Provide PV project related technical solutions to customers: from early planning to designing, from installation guidance to daily O&M, provide customers with complete technical support, technical consultation and training;
2. Selection, designing, manufacturing and installation guidance of the single-axis tracking system for PV power plant;
3. Complete supply chain of high-quality PV product components.
4. Research and development of emerging industries such as charging and energy storage.
