Sun Tracking Solar Panel Mount Solar Tracker Flat Single Shaft (reduction Gear Drive and Push Rod) All Foundation Types
Product Introduction
The solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun,
combined with high-performance microcontroller (DSP core), making the system accurate
and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time
closed-loop feedback tracking angle, automatic tracking, without human intervention.
Functions:
1. Backtracking function
Reduces shading and maximizes power generation;
2. Information collection function
Real-time acquisition of component tilt Angle; Real-time acquisition of weather conditions, coordinate position, altitude, time and other information;
3. Night reset function
At night, the components are restored to the initial maximum wind resistance state, and the errors caused by the day's operation are eliminated to ensure the accuracy of the entire tracking system;
4. Intelligent feedback
The controller adopts the inclination sensor of the international brand. Real-time closed-loop feedback tracks the tracking angle of the bracket, fully automatic tracking, without manual intervention.
Technical Parameters of Sun Tracking Solar Panel Mount Solar Tracker Flat Single Shaft (reduction Gear Drive and Push Rod) All Foundation Types
| Technical parameters |
| Product | Sun Tracking Solar Panel Mount Solar Tracker Flat Single Shaft (reduction Gear Drive and Push Rod) All Foundation Types |
| Tracking Range | 士 60° |

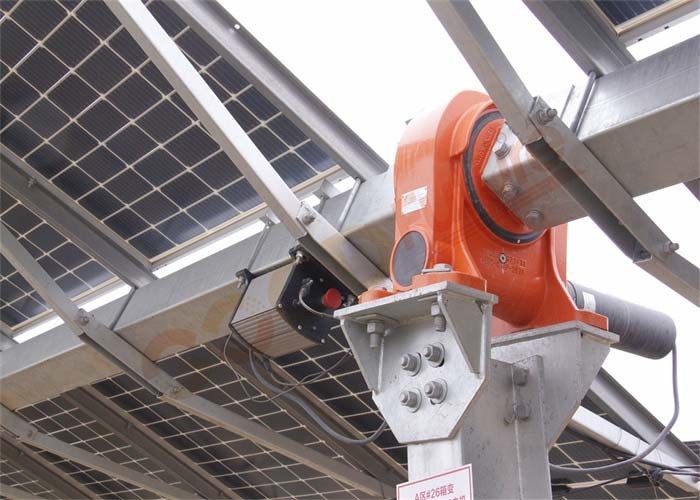

| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Ground Coverage Ratio | ≥ 25% |
| Structure Material | Hot dip galvanized steel |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
